Fieldpiece VPX7INT high efficiency Vacuum Pumps

Fieldpiece Vacuum Pumps with RunQuick™ Oil Change System - No Fuss - No Mess



Features

  • 10 CFM [283  l/m] with Variable Speed DC motor
  • 15 Micron ultimate Vacuum
  • Backlit oil reservoir to view condition of oil and system
  • Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
  • Water resistant to withstand direct rain
  • Suitable for A2L class refrigerants
    • R32, R1234YF, R1234ZE, R512A, 419B, 439A & other



These revolutionary pumps make Evacuation easier and faster.



Fieldpiece is leading the charge in properly performing system evacuation with its new vacuum pumps with RunQuick™ Oil Change System. Available in an 6, 8 & 10 cfm   - these revolutionary pumps make evacuation easier and faster.

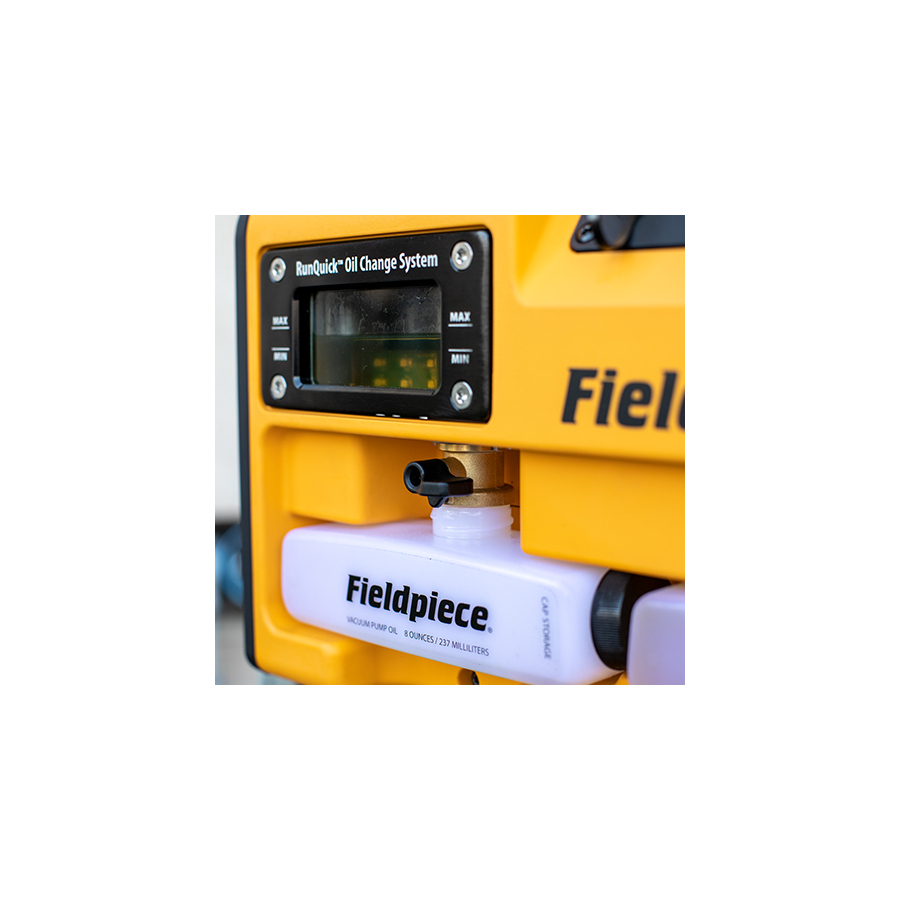

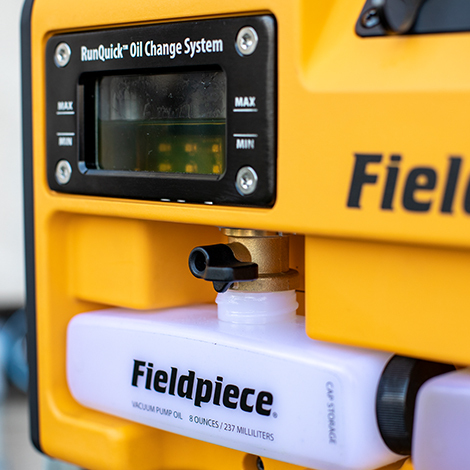

Good oil is a key ingredient of every evacuation. Clearly view your pump oil through the huge oil reservoir window to see the condition of the oil, and the system. When it’s time to change the oil, it’s quick, clean, and easy. With the RunQuick oil change system you can replace the oil in under 20 seconds, even while the pump is running without losing vacuum. Plus the extra wide base helps prevent tipping and spilling oil.

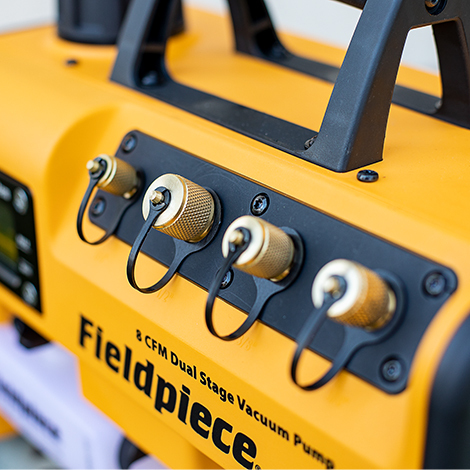

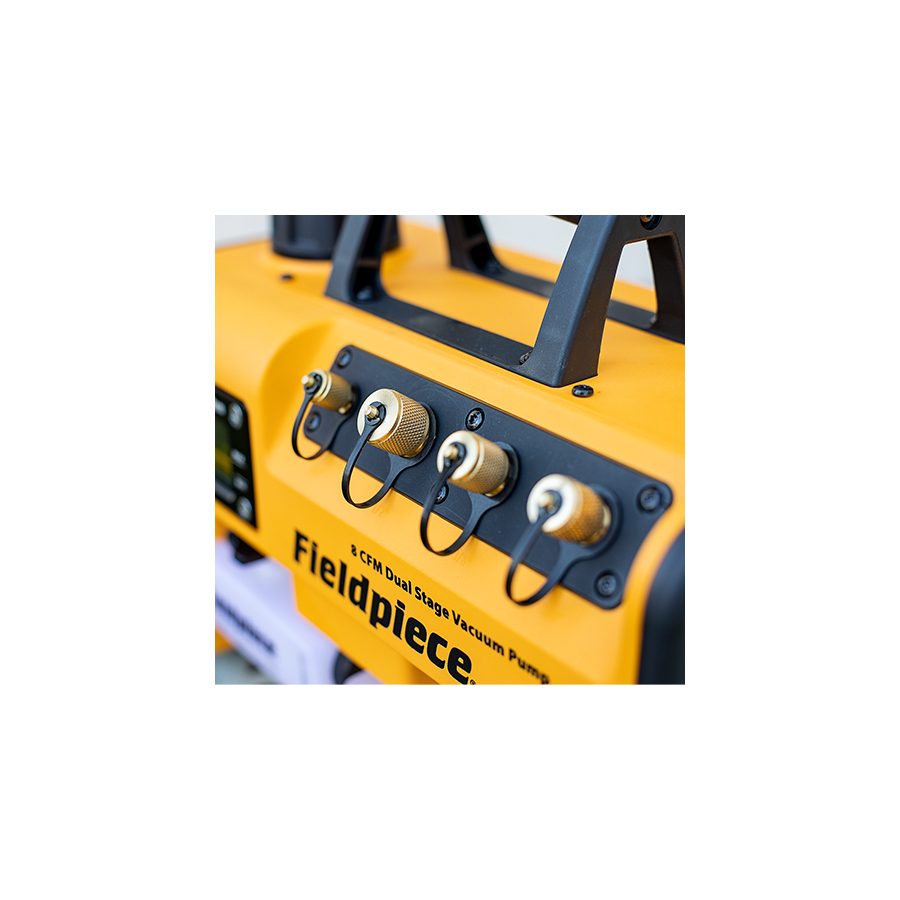

Four in-line ports give you tidy hose routing for three different size hoses. 1/4" : 3/8" : 1/2"

Place the power cord on the handle for tangle-free storage and easy lifting.



For quick change oil cartridges

Order Part # OIL8x3





(VPX7INT)

WHAT'S INCLUDED

  • VPX7INT Vacuum Pump
  • 2 x 8oz RunQuick Oil Containers [Filled]
  • Operator’s Manual



Specifications

  • Flow Rate: 10CFM [283 l/m]
  • Oil Capacity: 8oz (237 ml)
  • Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
  • Fieldpiece part numbers: OIL8X3, OIL32, OIL128
  • Oil Backlight: Blue LED
  • Oil Drain: Ball valve
  • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
  • Compressor: Rotary vane, two stage
  • Motor: 3/4 HP Brushless DC
  • RPM: 2500
  • Power Source: 240 VAC @ 50 Hz 1 phase
  • Nominal Current Draw: 6.0 AAC
  • Ultimate Vacuum at Input Ports: 15 microns
  • Dimensions: 201 mm x 296 mm x 406 mm
  • Weight: 10.9 kg
  • Operating Environment: -1.1°C to 50°C

SKU VPX7INT
Brand Fieldpiece
Shipping Weight 18.0000kg
Shipping Width 0.400m
Shipping Height 0.500m
Shipping Length 0.550m
Shipping Cubic 0.110000000m3
Unit Of Measure ea
Assembled Length 0.550m
Assembled Height 0.500m
Assembled Width 0.400m

1 - Year from Date of Purchase

​Excludes Consumables such as Oil, Leads, Filters, Batteries, Fuses, Sensors, Case etc
