New Model - DR58 - Go To

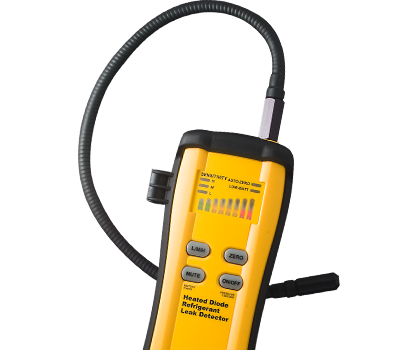

RETIRED - SRL8 - Heated Diode Refrigerant Leak Detector

Rugged and Accurate with State-of-the-Art Heated Diode Sensor

  • Sensitivity better than 0.1 oz/yr
  • 15-hour rechargeable lithium ion battery with wall and vehicle chargers
  • CFC, HFC, HCFC, and blends including A2L Class refrigerants such as R32, R1234YF
  • Manual or automatic zeroing
  • KIT: Leak Detector with Heated Diode sensor. Wall & Car charger.
  • Includes RFE2 225mm Flex Probe and RRE2 Ridgid Probe. Case & Filters

The Fieldpiece SRL8 Heated Diode Refrigerant Leak Detector is designed exclusively to make the HVAC/R Technician's job easier, faster, safer and more efficient. We set out to develop the best heated diode leak detector for HVAC/R. We believe the SRL8 is it. It comes in kit form in a rugged, blow-mold case with all of the extras you don't get from the other guys. (see What's Included?).

The Fieldpiece ergonomic standalone design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The 15-hour battery life lets you work all day and then some before recharging. The included vehicle and wall chargers help you during overtime. The MUTE and ZEROing functions allow you to work the way you want to work. The magnetic hanger helps keep the detector out of the way when repairing a leak, but visible enough so you won't leave it on the job.

Advantages Over Other Refrigerant Leak Detectors

  • Triggers on all CFCs, HFCs, HCFCs and blends.  More sensitive to some refrigerants than others.
  • 15-hour rechargeable, user replaceable battery. It lasts almost two full workdays on a single charge (if your hunting down leaks all day). You can also use it while it's hooked up to the wall or vehicle charger.
  • Filter system helps protect the sensor from moisture and other contaminants. The sensor is connected to the body at the other end of the snout. The filter is at the tip of the snout. If you accidentally hit some condensation or oil, the filter swells, shutting off the pull to the sensor and protecting it from failure.
  • Manual or automatic zeroing. It auto zeros every two seconds until a leak triggers the sensor. After that you can manually zero the detector to help further pinpoint leaks..
  • Up and running in 30 seconds. Some heated elements and corona discharge units take much more time to warm up.
  • UV dyes can take several hours to travel through a running system and can degrade system components.





SRL8 - Designed for HVAC-R                                    Three sensitivity levels from 6.6oz/yr to <0.1oz/yr.

  • Rugged / Ergonomic Features. Ruggedized boot and it fit's in your hand.
  • Heated Diode Sensor lasts up to 5 years (depending on use and exposure).
  • Audible/Visual Alarm. Turn the beep on or off - you decide.
  • 15-hour Battery Charge
  • Work all day and all night on one charge.
  • Battery life check. See how much charge you have left by looking at the LED display.
  • Non-conductive, Sturdy Probe. Stays where you want it.
  • LED and Audio alerts. Find leaks in noisy environments.
  • Mute: Turn off the sound when you don't want anyone to hear what you're doing.
  • Magnetic Hanger. Hang the unit while you repair the leak.






REFRIGERANT CLASS INFORMATION









(SRL8)

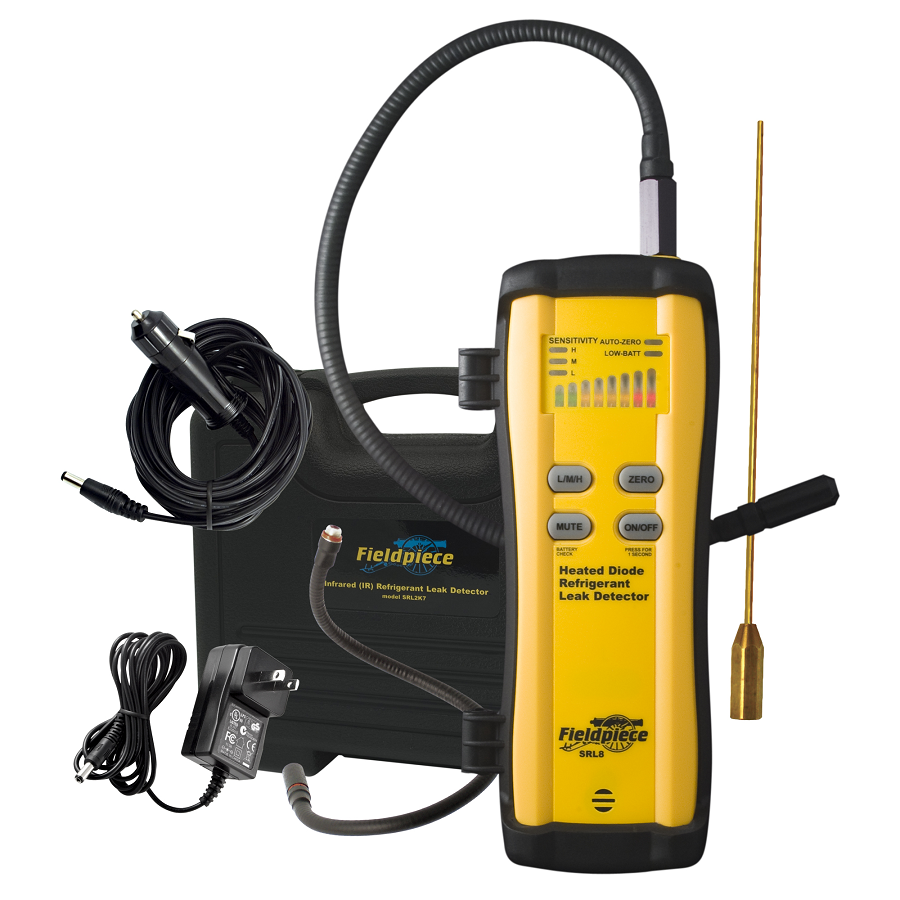

WHAT'S INCLUDED

  • Advanced Refrigerant Leak Detector - SRL8
  • (5) O-rings and 10 Replacement Filters - RFL2
  • 9-inch Flex-Probe Extension - RFE2
  • Rigid Extension Probe - RRE2
  • Blow-Molded Case - ABMK3
  • Operator’s Manual




SKU SRL8
Brand Fieldpiece
Shipping Weight 2.5000kg
Shipping Width 0.150m
Shipping Height 0.350m
Shipping Length 0.400m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
Assembled Length 0.400m
Assembled Height 0.350m
Assembled Width 0.150m
1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
