Superceded PRODUCT - Go to SM480vINT new model

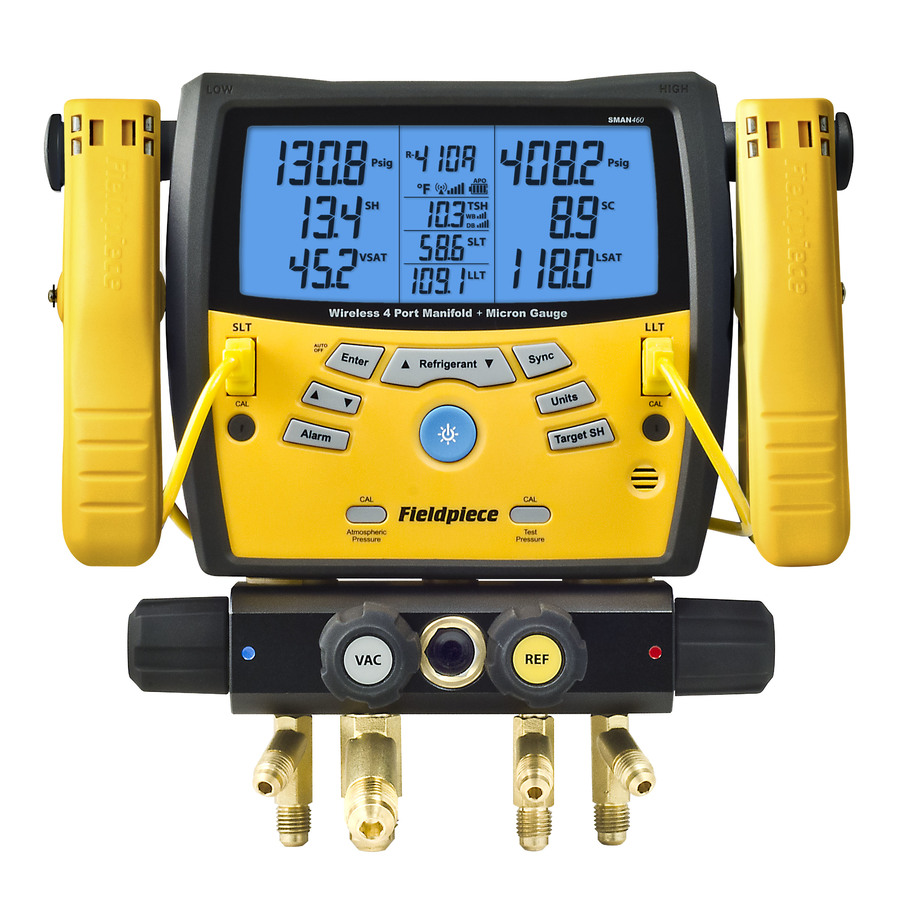

SMAN460 - Wireless 4-Port Digital Manifold with Micron Gauge

Premium Digital Manifold - Vacuum equipped 4-Port Manifold with ATC1 clamps and Hood.

On Target with Live Measurements

  • Extra rugged design
  • Live real-time adjustments with wireless measurements
  • Micron vacuum gauge with alarms, stopwatch, and rate indicator
  • Large 3/8" full bore and VAC port
  • All measurements on screen at one time

The SMAN460 wireless four-port digital manifold is the top-of-the-line Fieldpiece manifold.  It has more features and benefits than any other manifold on the market.  With target superheat automatically calculated, simultaneous superheat and subcooling, all 9 measurements displayed on the large, easy-to-read screen, extra large 3/8' full bore and 4th VAC port, and wireless measurements for real-time system diagnosis and charging, the SMAN460 is the manifold HVACR pros trust to do more.

Coupled with the JL2 Job Link Mobile System Transmitter and the SDP2 Dual In-duct Psychrometer, you get all your readings in the Job LinkTM Mobile System App as well as pre- and post-work check lists, in-depth system diagnostics, report emailing, and cloud storage for all work completed.Plus it has a built in micron vacuum gauge with gives technicians the ability to set high and low alarms, a stopwatch as well as view the micron rate of change.

  • Units of Measurement: - Psig, kPa, MPa, bar, inHg, and cmHg
  • Measures: - 2 Pressures & 2 Temperatures
  • Calculates:
    - Superheat
    - Subcooling
    - Target Superheat
    - Vapor Saturation
    - Liquid Saturation
  • Wireless Advantage
    - Receive indoor wet bulb and outdoor dry bulb measurements for live target superheat (additional instruments required).
    - Send measurements to Fieldpiece wireless system analyzers for diagnostics, data storage, and reporting.
  • Micron Alarms and Stopwatch
    - Set high and low alarms (microns of mercury).
    - Activate low alarm when you start pulling down. The stopwatch will start. When your low alarm sounds, the stopwatch will restart.
    - Activate high alarm when you isolate the system and the stopwatch resets again. When the system rises to your high alarm, the stopwatch will freeze.
    - Watch rate of change while pulling vacuum.
  • 4 Ports for One Time Hookup
    - Connect to high side, low side, vacuum pump, micron gauge, and recovery machine (or refrigerant tank). Then use the valves as needed to recover, evacuate and charge the system.
  • 3/8” Vacuum Port
    - The large 3/8” vacuum port and 3/8” full bore speeds up evacuation and charging.
  • Display Designed for HVAC-R
    - Huge screen with the information you need.
    - No more cycling through temperatures.
    - Calculated and measured values all shown.
    - Expanded temperature tolerances allow for testing in refrigerators and on rooftops.
    - Rugged polycarbonate LCD cover.
    - Bright backlight.
  • Temperature Solutions
    - Pipe clamps grip tight for speed and accuracy.
    - External cal. pots for easy field calibration.
  • Reliable Regardless of Elevation
    - Absolute pressure sensors give you accurate readings at any elevation.
  • Lab Quality 2-Point Field Calibration
    - Calibrate pressure sensors to the known pressure of your refrigerant tank at a known temperature for high accuracy over the entire pressure range.
  • And More
    - Front facing hose seats limit dirt and grime entering your manifold.
    - Sight glass to view refrigerant flow.
    - 45 refrigerants listed in order of popularity.
    - Receive free future product updates through Mini-USB port.
  • Auto-Power-Off (APO).
  • NIST traceable.
  • Wireless enabled for Logging, Tests & Target superheat capture.
  • USB port for updating firmware. [cable not included]

(SMAN460)

                                                               WHAT'S INCLUDED


  • 4-port Digital Manifold - SMAN460
  • Built-in Micron Gauge
  • 2 Type-K Pipe Clamp Thermocouples - TC24
  • Padded Carrying Case - ANC10
  • 6 AA Batteries
SKU SMAN460
Model # SMAN460
Brand Fieldpiece
Shipping Weight 5.0000kg
Shipping Width 0.350m
Shipping Height 0.400m
Shipping Length 0.150m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
